Give the Maximo Assistant a tool of your own: an automation script, published through MCP, that runs SQL queries

The idea in one picture

The Assistant does not talk to the database, or even to Manage's business objects, directly. It hands the request to an agent. The agent plans, picks a tool, and calls it through Manage's MCP server. The MCP server turns the call into an ordinary Manage API request, and Manage runs whatever sits behind that route. For a script tool, that is your script.

Manage can publish three kinds of tool of your own making: an object structure action, a workflow process, and an automation script. The script is the most flexible, because the tool does exactly what the script does.

What makes a script a tool

Three records, all in Manage:

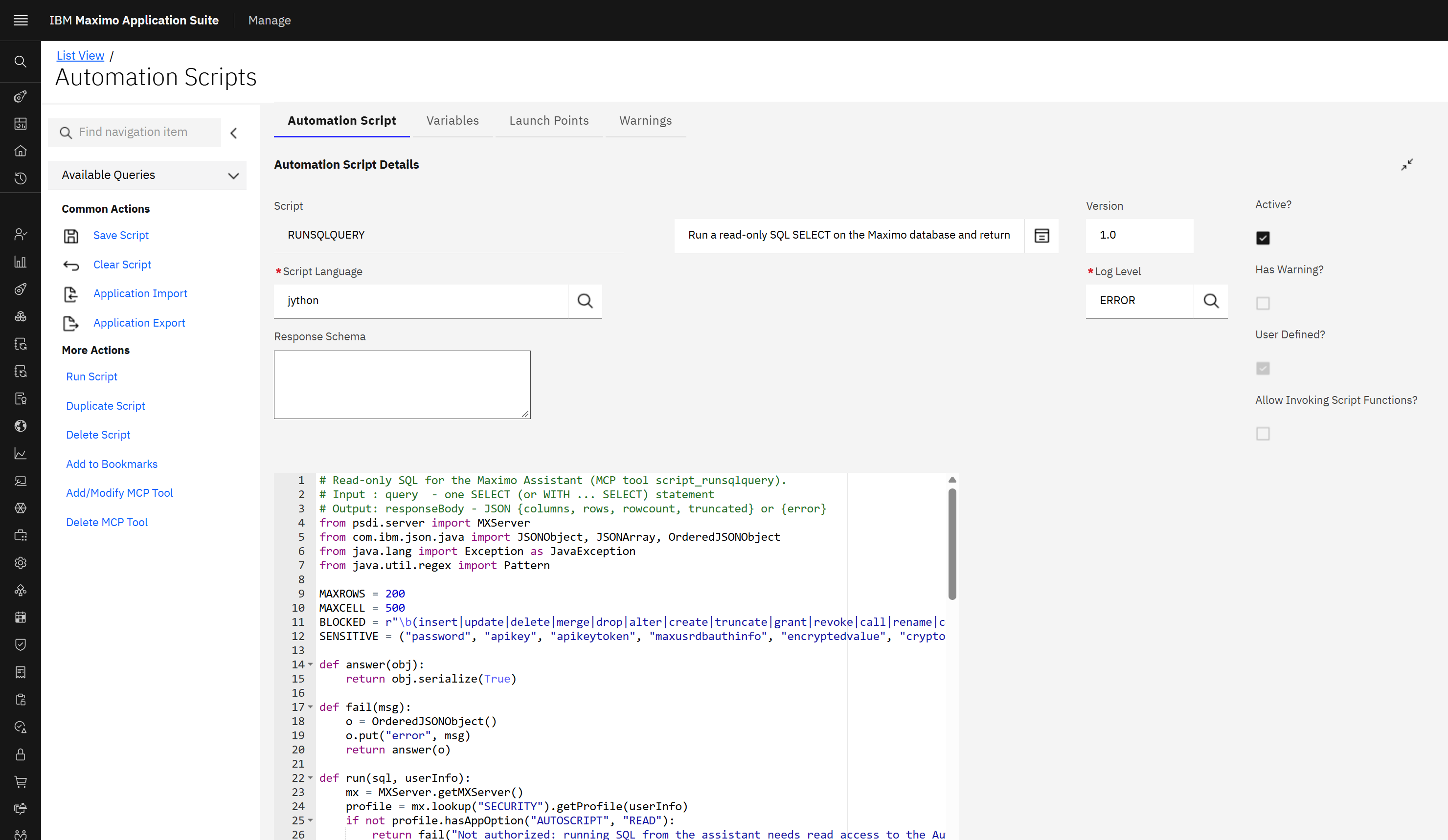

In the Automation Scripts application the third record is behind two actions in the More Actions list: Add/Modify MCP Tool and Delete MCP Tool. Without that record the script is just a script.

Inside the script, two things matter:

• Inputs arrive as variables. A variable called query is simply query in the script. The caller's identity arrives as userInfo.
• The answer leaves through responseBody. Set it to a string (JSON is the sensible choice) and that is what the tool returns.

Manage then exposes the script as an API route named after it, in lower case with a script_ prefix. A script called RUNSQLQUERY becomes the route and the tool script_runsqlquery.

The example: a read-only SQL tool

The tool takes one input, the SQL text, and returns the rows as JSON. A tool that runs SQL deserves guard rails, so the script refuses more than it accepts:

• One statement only, and it must start with SELECT or WITH.
• No semicolons and no comments, so a second statement cannot ride along.
• No keyword that changes data or structure, anywhere in the text.
• No password, API key or encrypted-value columns.
• At most 200 rows, each value cut at 500 characters, with a 60-second query timeout.
• Only for users who can read the Automation Scripts application, which in practice means administrators.

# Read-only SQL for the Maximo Assistant (MCP tool script_runsqlquery).
# Input : query  - one SELECT (or WITH ... SELECT) statement
# Output: responseBody - JSON {columns, rows, rowcount, truncated} or {error}
from psdi.server import MXServer
from com.ibm.json.java import JSONObject, JSONArray, OrderedJSONObject
from java.lang import Exception as JavaException
from java.util.regex import Pattern

MAXROWS = 200
MAXCELL = 500
BLOCKED = r"\b(insert|update|delete|merge|drop|alter|create|truncate|grant|revoke|call|rename|comment|lock|refresh|reorg|runstats|export|import|load)\b"
SENSITIVE = ("password", "apikey", "apikeytoken", "maxusrdbauthinfo", "encryptedvalue", "cryptokey")

def answer(obj):
    return obj.serialize(True)

def fail(msg):
    o = OrderedJSONObject()
    o.put("error", msg)
    return answer(o)

def run(sql, userInfo):
    mx = MXServer.getMXServer()
    profile = mx.lookup("SECURITY").getProfile(userInfo)
    if not profile.hasAppOption("AUTOSCRIPT", "READ"):
        return fail("Not authorized: running SQL from the assistant needs read access to the Automation Scripts application.")
    if sql is None:
        sql = ""
    sql = (u"%s" % sql).strip()
    while sql.endswith(";"):
        sql = sql[:-1].strip()
    low = sql.lower()
    if low == "":
        return fail("No SQL statement was given.")
    if not (low.startswith("select") or low.startswith("with")):
        return fail("Only SELECT statements can be run.")
    if ";" in sql or "--" in sql or "/*" in sql:
        return fail("Only one statement without comments can be run.")
    if Pattern.compile(BLOCKED).matcher(low).find():
        return fail("The statement contains a keyword that changes data or structure; only read-only SELECT is allowed.")
    for word in SENSITIVE:
        if word in low:
            return fail("The statement touches credential data (" + word + "), which this tool does not return.")
    key = userInfo.getConnectionKey()
    con = mx.getDBManager().getConnection(key)
    st = None
    rs = None
    try:
        st = con.createStatement()
        st.setMaxRows(MAXROWS + 1)
        st.setQueryTimeout(60)
        rs = st.executeQuery(sql)
        md = rs.getMetaData()
        n = md.getColumnCount()
        names = []
        cols = JSONArray()
        for i in range(1, n + 1):
            nm = md.getColumnLabel(i)
            names.append(nm)
            cols.add(nm)
        rows = JSONArray()
        count = 0
        truncated = False
        while rs.next():
            if count >= MAXROWS:
                truncated = True
                break
            r = OrderedJSONObject()
            for i in range(n):
                v = rs.getString(i + 1)
                if v is not None and len(v) > MAXCELL:
                    v = v[:MAXCELL] + "..."
                r.put(names[i], v)
            rows.add(r)
            count = count + 1
        out = OrderedJSONObject()
        out.put("rowcount", count)
        out.put("truncated", truncated)
        out.put("columns", cols)
        out.put("rows", rows)
        if truncated:
            out.put("note", "Only the first " + str(MAXROWS) + " rows are returned. Add a filter or FETCH FIRST n ROWS ONLY.")
        return answer(out)
    except JavaException, e:
        return fail("SQL error: " + str(e.getMessage()))
    except Exception, e:
        return fail("Error: " + str(e))
    finally:
        try:
            if rs is not None:
                rs.close()
        except:
            pass
        try:
            if st is not None:
                st.close()
        except:
            pass
        mx.getDBManager().freeConnection(key)

responseBody = run(query, userInfo)

The three records as a database script

I delivered the tool as a Maximo database script (a DBC file), so that it can be reviewed, versioned and applied to another environment. These are its statements for Db2, with the script source left out:

insert into autoscript (autoscript, description, status, createddate, statusdate, changedate, changeby,
       autoscriptid, hasld, langcode, scriptlanguage, userdefined, loglevel, interface, active, aitool, version, source)
values ('RUNSQLQUERY', 'Run a read-only SQL SELECT on the Maximo database and return the rows (max 200).',
       'Active', current timestamp, current timestamp, current timestamp, 'MAXADMIN',
       autoscriptseq.nextval, 0, 'EN', 'jython', 1, 'ERROR', 0, 1, 1, '1.0', <script source>);

insert into autoscriptvars (autoscriptvarsid, autoscript, varname, varbindingtype, vartype, description,
       allowoverride, literaldatatype, accessflag)
values (autoscriptvarsseq.nextval, 'RUNSQLQUERY', 'query', 'LITERAL', 'IN',
       'The SQL SELECT statement to run, exactly as the user wrote it. One statement, no semicolon.', 1, 'ALN', 0);

insert into mcptool (name, type, mcpreadonly, title, queryapiasresp, userdefined, mcptoolid, mcpdml)
values ('RUNSQLQUERY', 'AUTOSCRIPT', 1, 'Run SQL query', 0, 1, mcptoolseq.nextval, 0);

Check the tool from an MCP client

Any MCP client connected to Manage's MCP server now lists the tool. In essence, this is what the client sees:

{
  "name": "script_runsqlquery",
  "title": "Run SQL query",
  "description": "Run a read-only SQL SELECT on the Maximo database and return the rows (max 200).",
  "annotations": { "readOnlyHint": true, "destructiveHint": false, "toolType": "AUTOSCRIPT", "custom": true },
  "inputSchema": { "type": "object", "properties": { "query": { "type": "string" } } }
}

And these are real calls and answers from the test system. First a query that is allowed, then four that are not:

query : select wonum, description, status, siteid from maximo.workorder w
        where not exists (select 1 from maximo.wpmaterial m where m.wonum = w.wonum)
        fetch first 3 rows only
answer: {"rowcount":3,"truncated":false,"columns":["WONUM","DESCRIPTION","STATUS","SITEID"],
         "rows":[{"WONUM":"W102957_DT_US_1A999","DESCRIPTION":null,"STATUS":"CLOSE","SITEID":"DETROIT"}, ...]}

query : select count(*) as n from workorder
answer: {"rowcount":1,"truncated":false,"columns":["N"],"rows":[{"N":"67501"}]}

query : update workorder set description='x' where wonum='1'
answer: {"error":"Only SELECT statements can be run."}

query : select userid, password from maxuser
answer: {"error":"The statement touches credential data (password), which this tool does not return."}

query : select wonum from workorder; delete from workorder
answer: {"error":"Only one statement without comments can be run."}

query : select nosuchcol from workorder
answer: {"error":"SQL error: \"NOSUCHCOL\" is not valid in the context where it is used.. SQLCODE=-206, SQLSTATE=42703"}

Each call took four to five seconds on this cluster, almost all of it outside the database.

Let the Assistant use it

Publishing the tool is not quite enough for the Assistant. Its agent does not use every tool the MCP server lists: it keeps only the tool types on an allow list. On Maximo Application Suite 9.2.7 that list holds the three AI configuration tools (natural-language query, insights and documentation search). A script tool has the type AUTOSCRIPT, so the agent drops it, and the Assistant keeps saying it cannot run commands.

On my lab system I added AUTOSCRIPT to the agent's allow list (the ALLOWED_TOOL_TYPES environment variable of the agent deployment). After the agent restarted, its log showed the tool among the ones it kept:

Filtered tools | original=18 | filtered=6 | tools=['alm_mcp__aicfg_ibmdocs', 'alm_mcp__aicfg_insight',
  'alm_mcp__aicfgasmd_assistant', 'alm_mcp__aicfgasmdtors_assistant', 'alm_mcp__script_runsqlquery',
  'internal_mcp__textual_data_analyzer']

The result

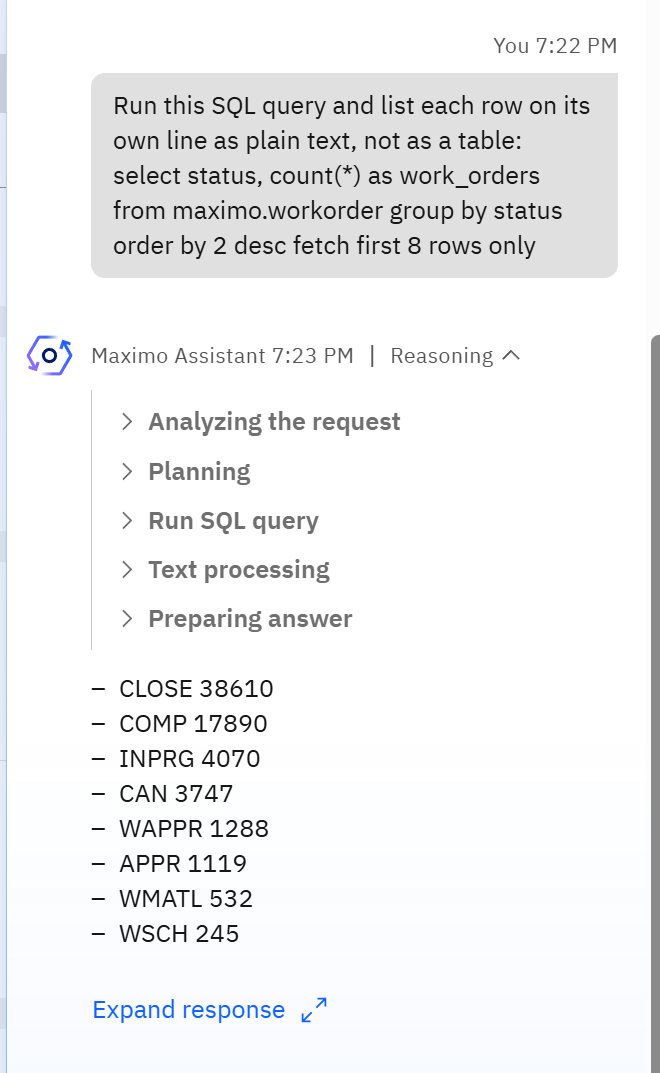

Back in the Assistant, I asked it to run a query. The reasoning steps show what happened: the agent analysed the request, planned, and ran a step named Run SQL query, which is the title of the MCP tool record. Then it wrote the answer from the rows the script returned.

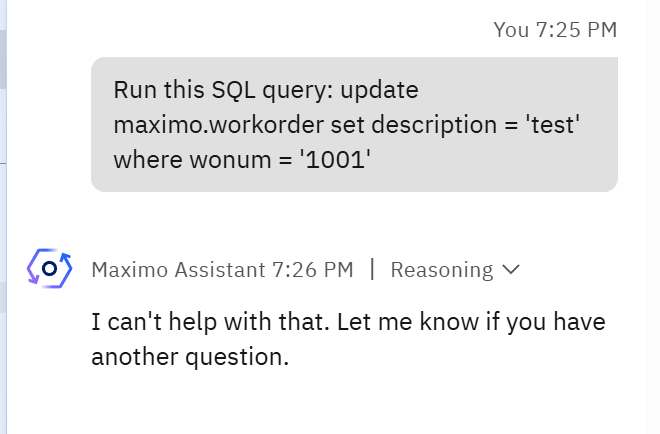

The language model adds a layer of its own. When I asked it to run an UPDATE, it did not call the tool at all. Had it tried, the script would have refused, as the direct calls above show. Do not rely on the model for this: the guard rails belong in the script.

A wording tip: the model decides from the tool's description, so say what you want. "Run this SQL query" followed by the statement was enough here.

What this tool goes around

Read this before building anything like it for real users.

• It bypasses Maximo's data security. SQL runs with the database user of the Manage server. Site and organization restrictions, data restrictions and conditional security do not apply: a user who can call the tool can read every row of every table. That is why the script checks for administrator-level access first.
• A keyword filter is not a security boundary. It stops accidents and obvious misuse. The real protection would be a separate read-only database user, which this example does not use.
• Rows go to the language model. Whatever the query returns is sent to the model so it can write the answer. Treat the result set as data leaving the database.
• A heavy query is still a heavy query. The row limit caps what comes back, not what the database has to do.

For everyday questions the Assistant already has a safer path: its natural-language query tool goes through Manage's object structures, so Maximo security applies. A script tool earns its place when you need something the object structures cannot express, or an action that is your own business logic. The SQL tool is the simplest example that shows every part of the mechanism.

The same pattern, other tools

Nothing above is specific to SQL. The pattern is: describe the tool in one clear sentence, declare each input as a variable with a description, do the work under the caller's identity, and return JSON through responseBody. A tool that returns the open work orders of an asset with their failure history, one that checks a storeroom's stock against a job plan, or one that starts a specific escalation, are all the same three records with a different script.

Checklist

Built and tested on IBM Maximo Application Suite 9.2.7 with Manage 9.2.4 and AI Service 9.2 on Red Hat OpenShift, Db2 12.1, demo data, October 2026. Tool names, timings and log lines are those of one demo cluster. How Manage publishes tools is described here as observed on that system; the IBM documentation prevails.
